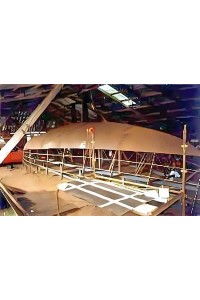

Roberts 434 Gallery - a radius chine steel hull at construction stage

Roberts 434 Gallery - a radius chine steel hull at construction stage

Roberts 434 Gallery - a radius chine steel hull at construction stage

Here is a fine example of a R434 being built in Radius Chine Steel by Nathan on the Mornington Peninsula in Victoria, Australia.

Time taken to make the hull fair and true during this stage of building as Nathan has done will be rewarded with a finished yacht truly to be proud of.



Roberts 434 Gallery - frames stood in position
Frames stood in position and braced on strongback

Roberts 434 Gallery - stringers all notched in
Stringers all notched in.

Roberts 434 Gallery - radius plates tacked in position
Radius plates tacked in position first, and then the bottom plates added.



Roberts 434 Gallery - lining plates up before tacking in position
Note small flat bars tacked to plate at joins to align all plates up perfectly

Roberts 434 Gallery - turn  over day
Turnover day



Roberts 434 Gallery - starting on deck beams
Starting on the deck beams.
