Several examples of this design are already in service.
The layout could be varied to suit charter work, for instance the
boat is large enough to have two double cabins forward and two double cabins aft.
Below are shots of different Robert 58's
Roberts 58
The standard version of this design has a draft of 2.1 meters but this is a large vessel and many interior layouts are possible. The standard sail plan is a ketch rig and the layout as drawn has a spacious aft cabin.
You can build the Roberts 58 in either Round Bilge Fibreglass or Radius Chine Steel or Radius Chine Aluminium. The complete plans and Full Size Patterns include many sheets of large-scale drawings, plus full-size patterns for the hull, deck and cabin top beams, etc.
The large scale study plan package includes many construction drawings showing the building method for the material of your choice plus the general arrangement, sail and accommodation plans.
| L.O.A. | 17.83 m | 58' 6" |
| L.W.L. | 14.71 m | 48' 4" |
| BEAM | 5.02 m | 16' 6" |
| DRAFT | 1.68 to 2.1 m | 5' 6" to 7' 0" |
| DISPLACEMENT | 27,216 kg | 60,000 lb |
| BALLAST | 9,072 kg | 20,000 lb |

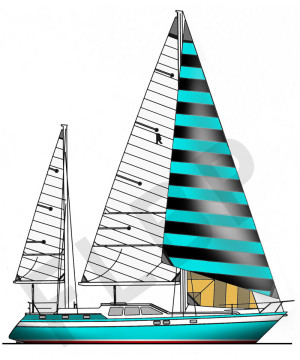

Roberts 58 Boat Plan
- Brand: Bruce Roberts Designs
- Product Code: Roberts 58
- Availability: In Stock
-
$0.00
Prices in Australian Dollars (AUD)SP - Study Plans
FPP - Full Plan and Patterns
